A Permanently Installed Concept Machine

How far can people and machines understand one another?

Facing this question head-on, we developed a concept machine that incorporates automation throughout and installed it permanently at our company.
You can experience at any time features that dramatically improve productivity, such as automatic web (roll) loading and automatic cutter positioning.

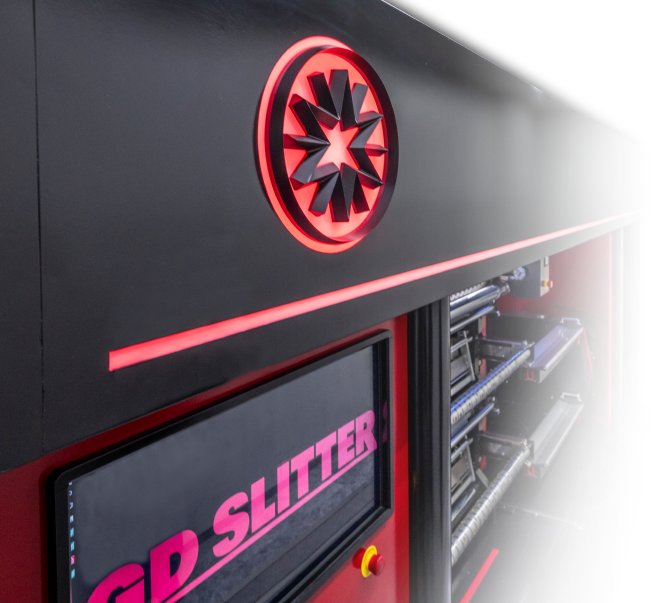

The concept machine “GD SLITTER,” with its striking red-and-black exterior

Slitter

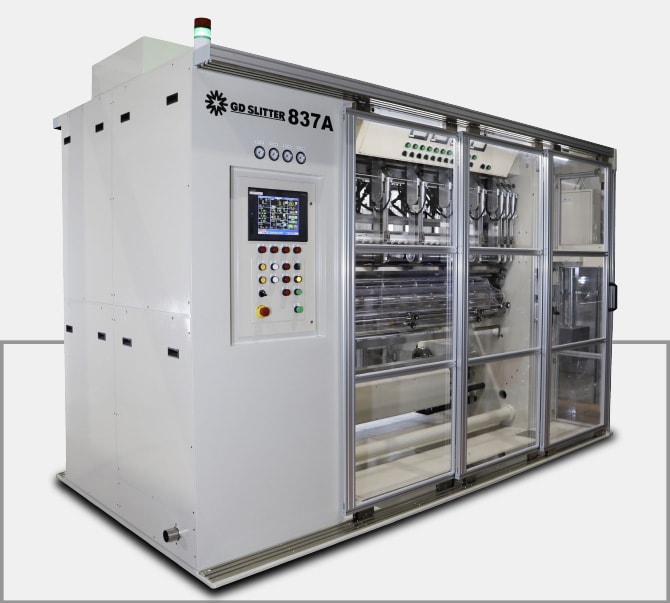

  • Exterior of the MODEL-837A

    MODEL-837A

    Industries Served
    Rechargeable batteries
    flexible packaging
    Application
    Separator film
    PE film
    Features
    Front/rear distribution type
    Independently driven rewinding arm system
    Max. material width
    1,300mm
    Max. unwind diameter
    400mm
    Max. winding diameter
    400mm

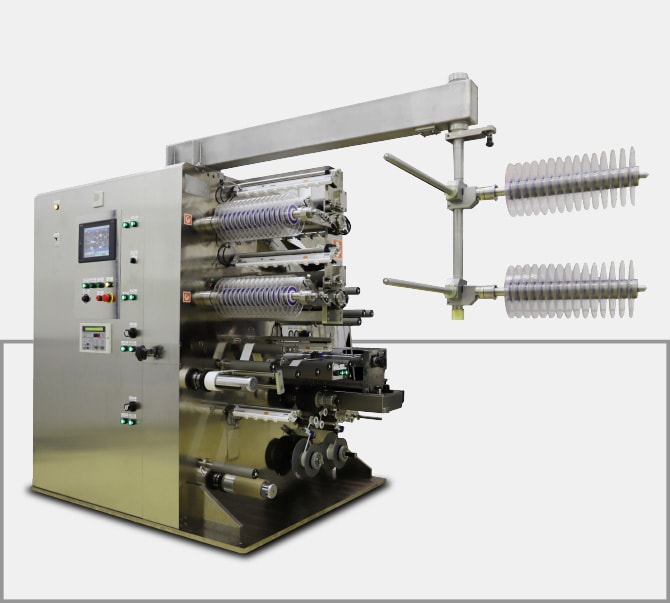

  • Exterior of the MODEL-171L

    MODEL-171L

    Industries Served
    Electronic materials
    Application
    ACF (Anisotropic Conductive Film)
    Features
    Narrow-width, multi-strip rewinding
    Max. material width
    200mm
    Max. unwind diameter
    300mm
    Max. winding diameter
    250mm

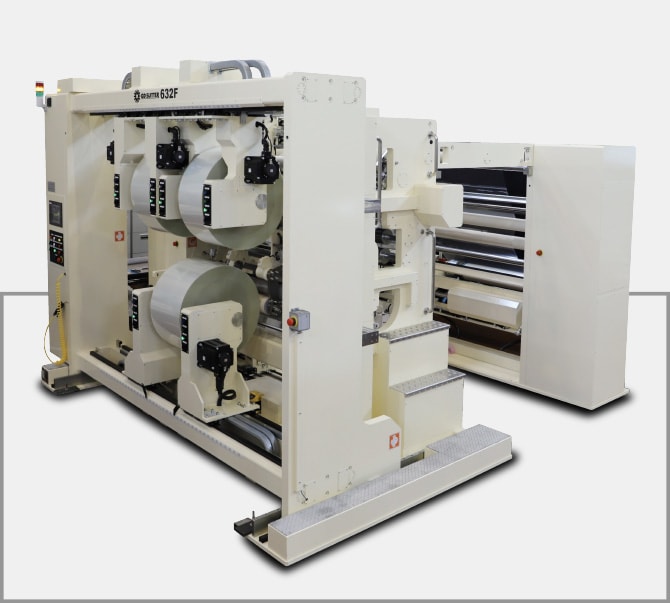

  • Exterior of the MODEL-632F

    MODEL-632F

    Industries Served
    Functional materials
    Application
    PET film
    PVA film
    various coating films
    Features
    Upper/lower two-tier, horizontally shifting rewinding type
    Max. material width
    2,800mm
    Max. unwind diameter
    800mm
    Max. winding diameter
    800mm

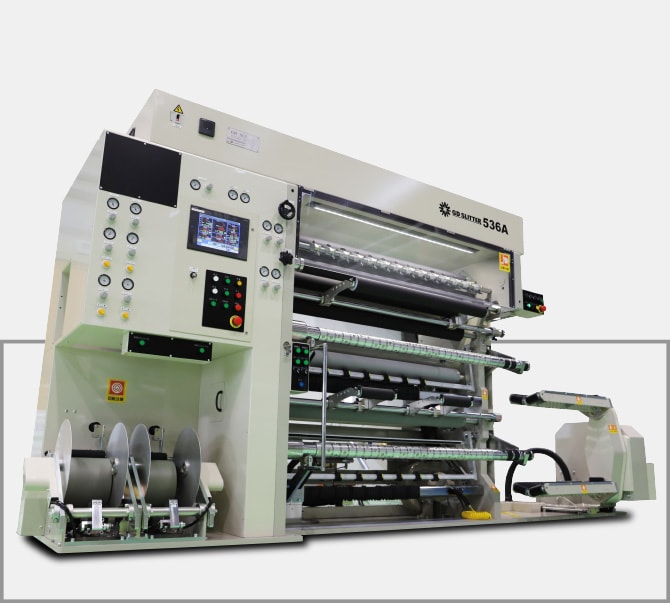

  • Exterior of the MODEL-536A

    MODEL-536A

    Industries Served
    Film
    Application
    Various printing films
    photosensitive film
    Features
    Front-side upper/lower two-tier, twin-shaft rewinding
    Max. material width
    1,300mm
    Max. unwind diameter
    800mm
    Max. winding diameter
    500mm

Rewinder

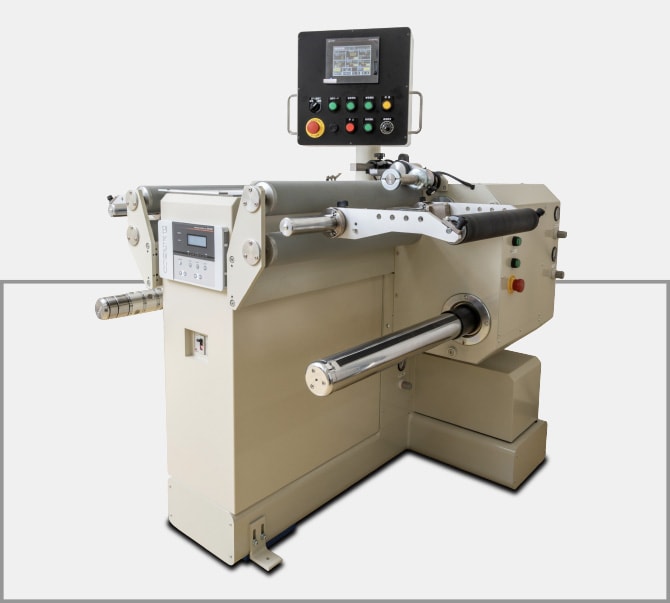

  • Exterior of the MODEL-134F

    MODEL-134F

    Industries Served
    Functional materials
    Application
    Rewinding of various films
    Features
    Cantilever-type compact rewinder
    Individual friction shaft
    Max. material width
    500mm
    Max. unwind diameter
    500mm
    Max. winding diameter
    500mm

We offer a wide-ranging lineup of other slitters and rewinders as well, handling a broad variety of materials.
We propose the machine best suited to your needs and deliver a one-of-a-kind solution.
